hikvision hwn-2108mh-p hiwatch series nvr 8ch@4mpx wireless wif
hikvision hwn-2108mh-p hiwatch series nvr 8ch@4mpx wireless wif
Produit neuf et garanti. Cliquez ici pour des informations plus détaillées
Les frais de port pour 1 ou 1000 pièces sont toujours de 10 euros
Description

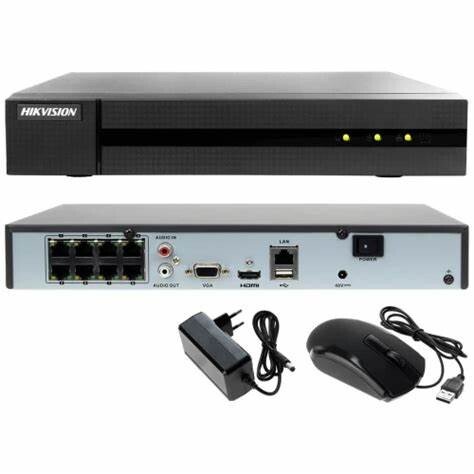

HWN-2108MH-8P | Nvr Hikvision
Hikvision HWN-2108MH-8P Hiwatch series 8-channel digital NVR with PoE.
HD+ resolution at 6mpx (40Mbps input bandwidth) with H.265+ video compression technology, Onvif (multi-brand) compatibility protocol and P2P QR scan facilitated configuration system with dedicated HIK-Connect Cloud service.
HD+ video recording is processed by the H.265+ compression system. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications:
- NVR 1U 8Ch channels with high performance processor;
- Integrated 8 ports PoE+ switch ≤ 75W (802.3af/at).
- Resolution supported up to @4 Mpx
- Playback of one channel at 4Mpx or 2 channels at 1080P
- H.265+/H.265/ H.264+/H.264 Video Compression
- Max 60Mbps input bandwidth
- Simultaneous HDMI / VGA video output
- Supports 1 SATA HDDs up to 6TB, 2 USB(USB2.0);
- Mobile viewing on iPhone, iPad and Android;
- Supports multi-brand network cameras - Onvif protocol;
- 1 connectable SATA interface for recording and backup;
- 1 self-adaptive 10/100/1000 Mbps network interface;
Ingresso video/audio
Ingresso video IP 8-ch, fino a 6 MP di risoluzione
Rete
Larghezza di banda in entrata 60 Mbps
Larghezza di banda in uscita 60 Mbps
Connessione remota 16
Uscita video/audio
Risoluzione di registrazione 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Risoluzione dell'uscita HDMI 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Risoluzione dell'uscita VGA 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, uscita simultanea HDMI/VGA
Decodifica
Formato di decodifica H.265+/H.265/ H.264+/H.264
Risoluzione live view/Playback 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Riproduzione sincrona 8-ch
Capacità di decodifica 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps)
Tipo di flusso Video, Video & Audio
Gestione della rete
Protocolli di rete TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Protocollo della telecamera TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
Disco rigido
SATA 1 interfaccia SATA
Capacità del disco rigido Fino a 6TB di capacità per ogni disco
Interfaccia esterna
Interfaccia di rete 1, interfaccia Ethernet autoadattiva RJ-45 10/100Mbps
Interfaccia USB 2 × USB 2.0
Interfaccia POE
Interfaccia 8, interfaccia Ethernet autoadattabile RJ-45 10/100 Mbps
Potenza ≤ 75W
POE Standard supportati IEEE 802.3 af/at
Generale
Alimentazione 48 VDC
Potenza ≤ 90W
Consumo (senza disco rigido e PoE) ≤ 10 W
Temperatura di lavoro Da -10 a +55º C
Umidità di lavoro 10 % a 90 %
Telaio Telaio 1U
Dimensioni 260 × 225 × 48 mm
Peso ≤ 1 kg
Modello HWN-2108MH-8P
Marca Hikvision
Classe énergétique
Classe energetique | F |
